Electronics

Chipset: Intel H55

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 128 GB

Processor compatibility: Intel Xeon Scalable

Processor compatibility: Intel Core

With CPU: Yes

Support Memory Type: DDR4

Number of PCI: 0

Storage Interface Type: SATA

Storage Interface Type: M.2 (NVMe)

Storage Interface Type: M.2(SATA)

Package: Yes

RAID Supported: no

Application: Desktop

Application: Laptop

Application: Server

Chipset Manufacturer: Intel

Back I/O Ports: 1x RJ45

Back I/O Ports: 6 x USB 2.0

Back I/O Ports: 3 x Audio Jacks

Back I/O Ports: PS/2

PCI - E standards: PCI - E 3.0

Socket Type: LGA 2011-3

Special Function: none

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Household

Usage Scenario: Office

Usage Scenario: DESIGN

Usage Scenario: Video Production

Number of PCIe x 8: 0

Number Of Memory Slots: 4

Form Factor: CeB

Support USB Type: USB 2.0

Support USB Type: USB 3.0

Number of PCIe x 16: 2

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard Connectors & Header: CPU Fan Connector(s)

Onboard Connectors & Header: AAFP Connector

Memory channel: Double

Number of SATA Ports: 6

SATA RAID: 0

Quality Certification: ce

Quality Certification: ROHS

Number of PCIe x 1: 1

Certification: RoHS

Certification: CE

Form Factor: ATX

Supports M.2 SSD: 2280

Number of M.2: 2

With processor:: E5 2650 V4 cpu

With memory:: 2pcs 16GB 2400



What's in the package?

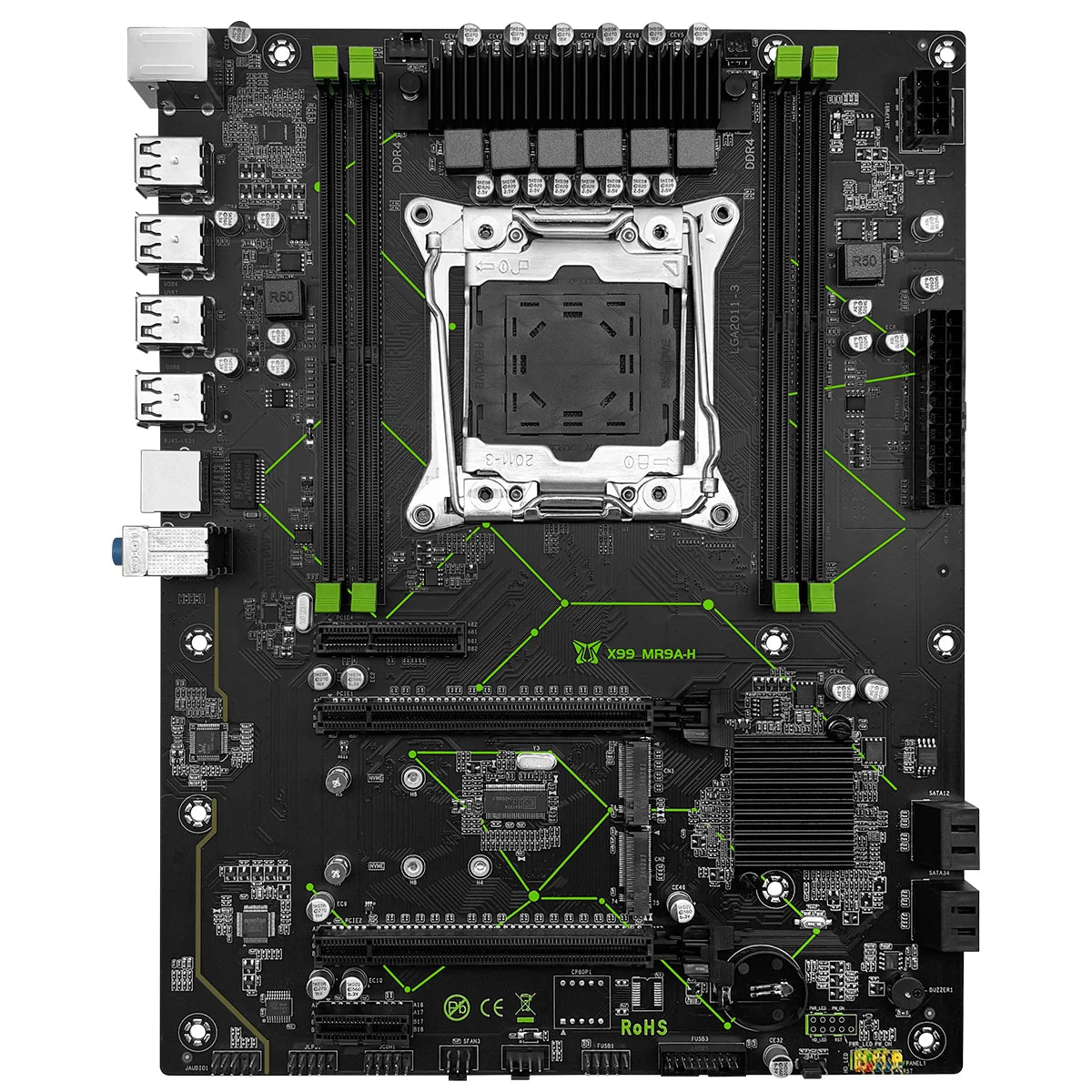

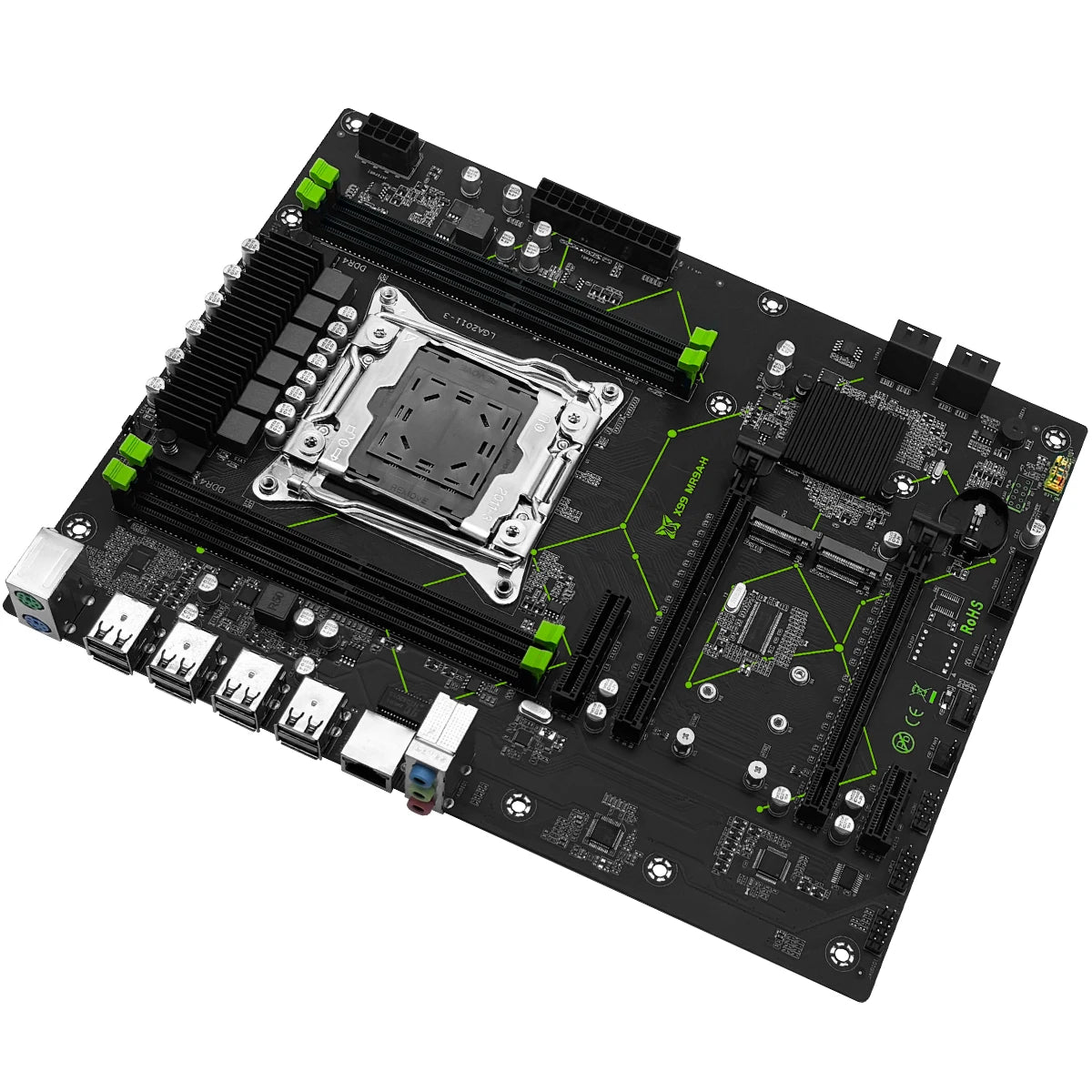

1.x99 MR9A-H motherboard *1PCS,
2.E5 2650 V4 Used CPU *1pcs,
3.DDR4 16GB 2400MHz ECC RAM *2PCS.
Please note: Some processors only support up to DDR4 1866Mhz or 2133MHz memory. This means that when 3200Mhz or 2666Mhz is installed it will only show 1866Mhz and 2133MHz. If you mind, please don't place an order. You can read 3200mhz and 2133MHz on CPU-Z.

CPU socket: LGA 2011-3.
Motherboard model: E5 MR9A-H.
Structure: ATX.
Chipset:Intel H55 .
Memory slot: 4*DDR4
Maximum memory supported: 4*32GB DDR4 memory .
The memory types support : DDR4 desktop and server memory. (Please use Samsung, Kingston, SanDisk, Micron, Hynix and other international brands, other brands are incompatible).
LAN port: 10/100/1000Mbps/s.
Video output port: requires graphics card support.

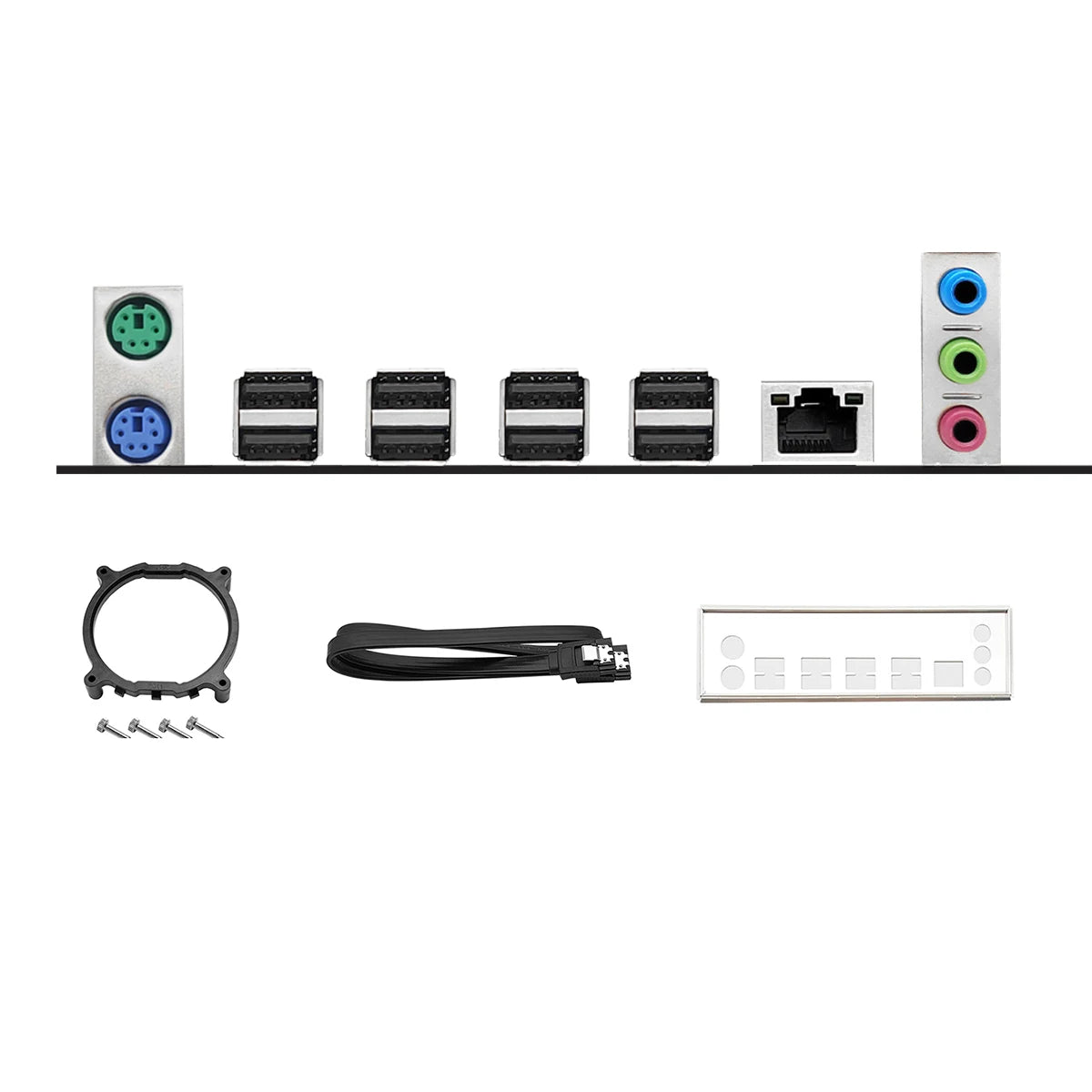

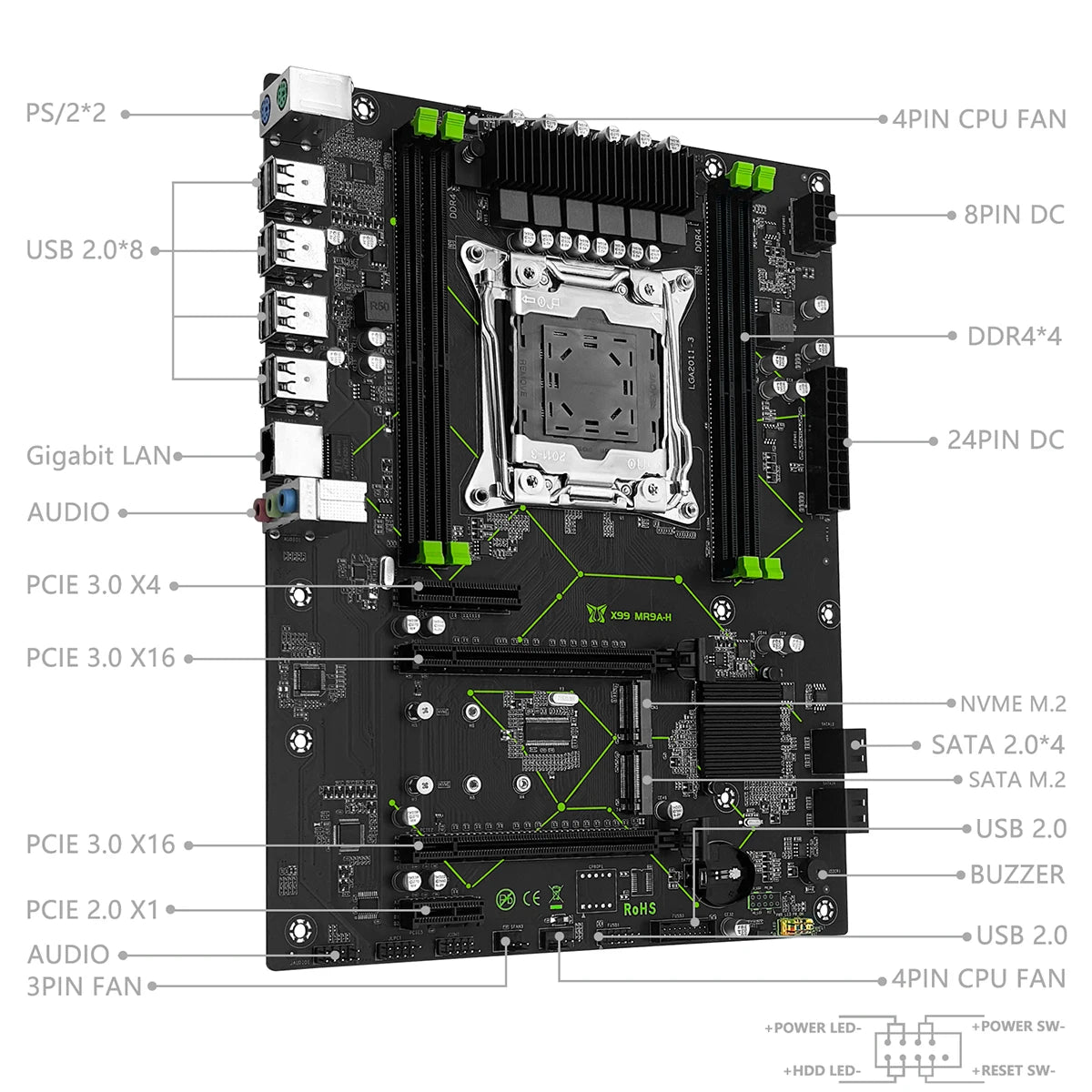

Interface: 1*RJ45/1*PS2/4*SATA2.0/2 *SATA3.0/6*USB2.0/2*USB3.0/2*PCI-E x16/1*PCI-E x1/1*PCI-E x4/NVME M.2 interface * 2;

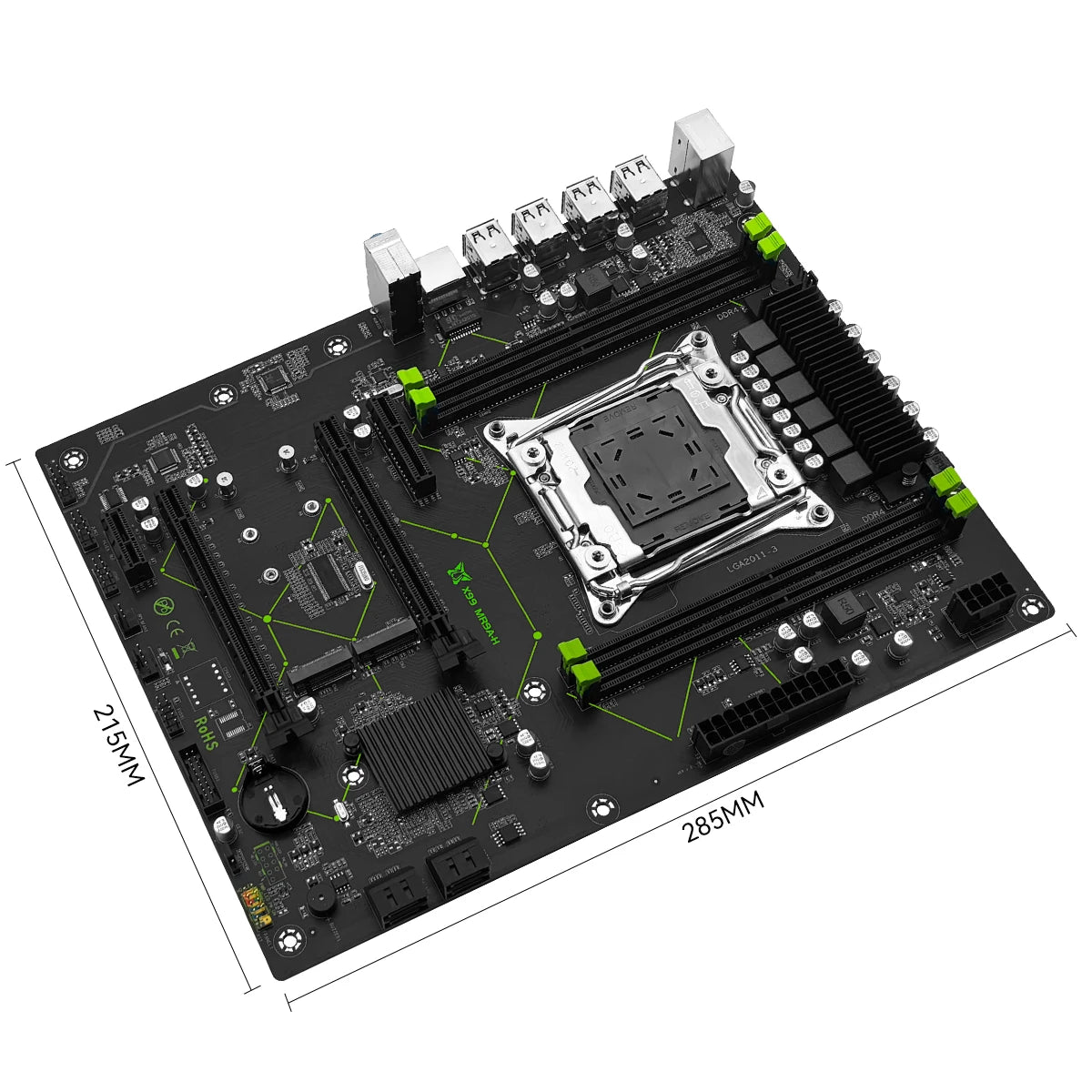

Motherboard size: 216MM*283MM.
Motherboard weight (including packaging): about 1.3kg.
