Electronics

Model: X99 K9

Chipset: Intel X99

Onboard LAN: 1x RJ45

Onboard LAN: WIFI (AC)

Maximum Ram Capacity: 128 GB

Processor compatibility: Intel Core i7

With CPU: Yes

Support Memory Type: DDR4

Number of PCI: 0

Storage Interface Type: SATA 3

Storage Interface Type: M.2 (NVMe)

Storage Interface Type: M.2(SATA)

Package: Yes

RAID Supported: YES

Application: Desktop

Application: Server

Application: Workstation

Chipset Manufacturer: Intel

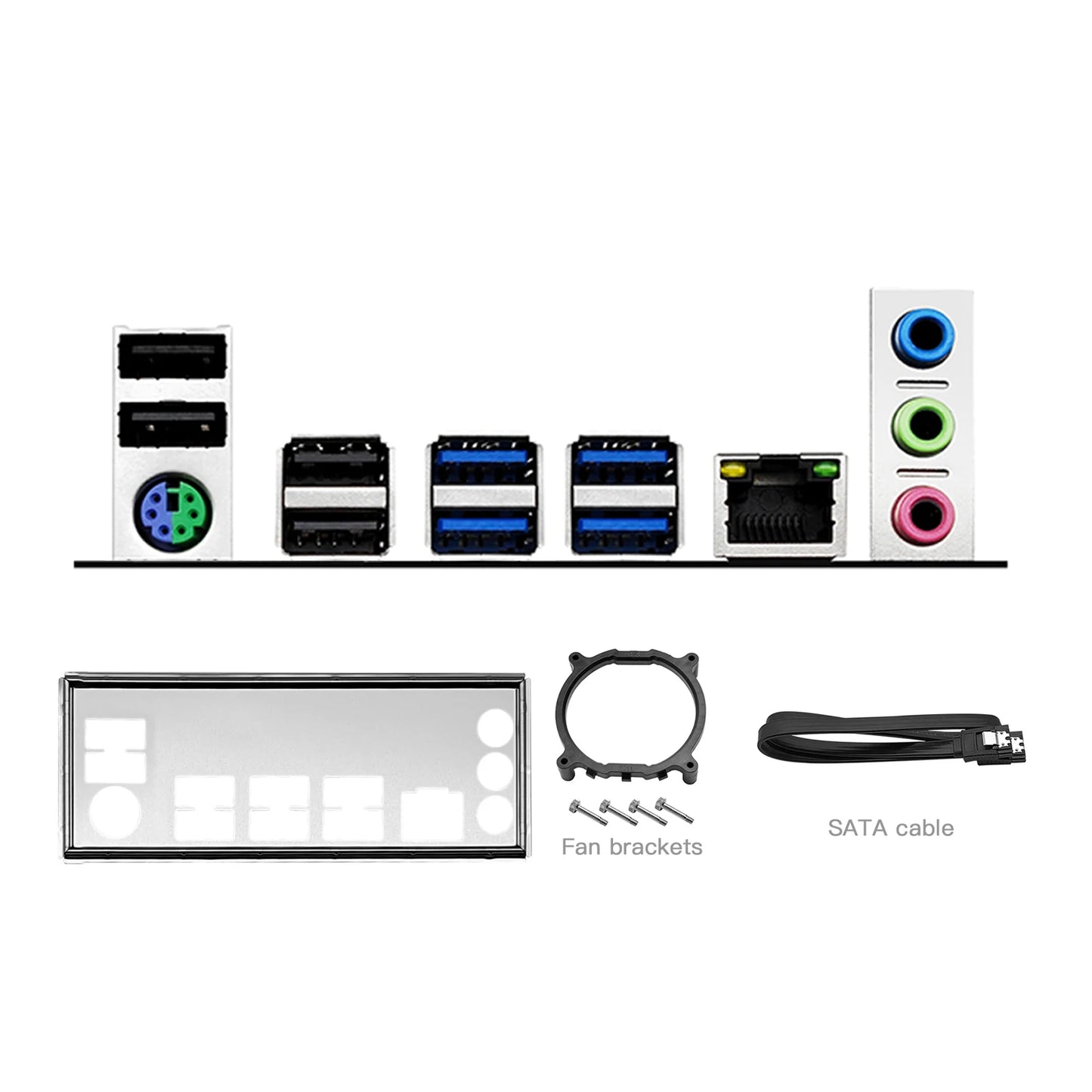

Back I/O Ports: 1x RJ45

Back I/O Ports: WIFI

Back I/O Ports: 3 x Audio Jacks

PCI - E standards: PCI - E 3.0

Socket Type: LGA 2011-3

Special Function: Support For Overclocking

Usage Scenario: Enthusiast & Overclocking

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Household

Usage Scenario: Office

Usage Scenario: DESIGN

Usage Scenario: Video Production

Usage Scenario: Workstation

Usage Scenario: Server

Usage Scenario: Scientific Computing

Usage Scenario: 3-D Modeling

Usage Scenario: others

Number of PCIe x 8: 0

Number Of Memory Slots: 4

Form Factor: CeB

Support USB Type: USB 2.0

Support USB Type: USB 3.0

Number of PCIe x 16: 1

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard Connectors & Header: CPU Fan Connector(s)

Onboard Connectors & Header: USB 3.0 Connector

Onboard Connectors & Header: 8-pin +12V Power Connector

Memory channel: Four

Number of SATA Ports: 6

SATA RAID: 1

Quality Certification: ce

Quality Certification: ROHS

Number of PCIe x 1: 1

Form Factor: Micro-ATX

Supports M.2 SSD: 2280

Number of M.2: 2



The set includes 1PCS motherboard, 1PCS processor and 4PCS memory.

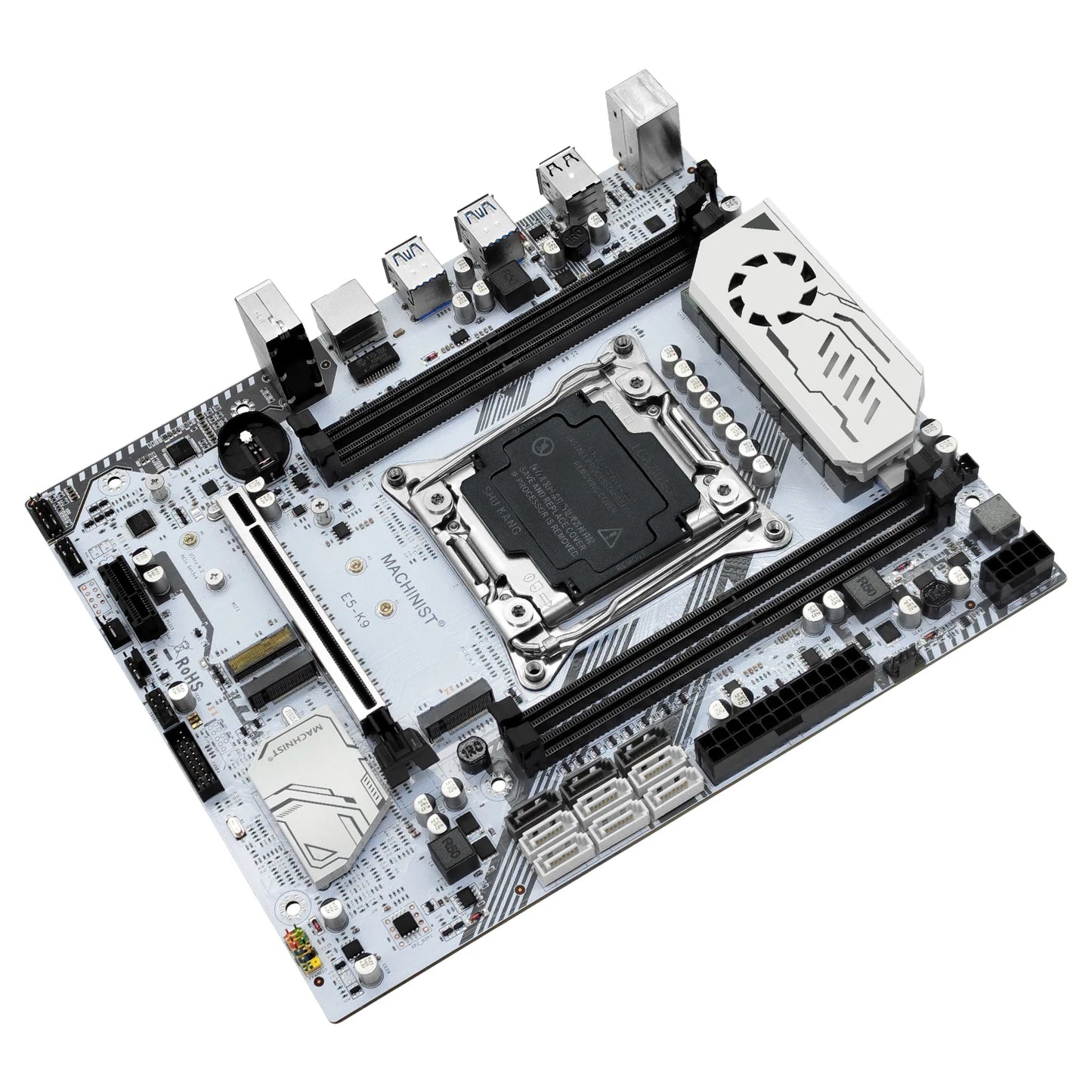

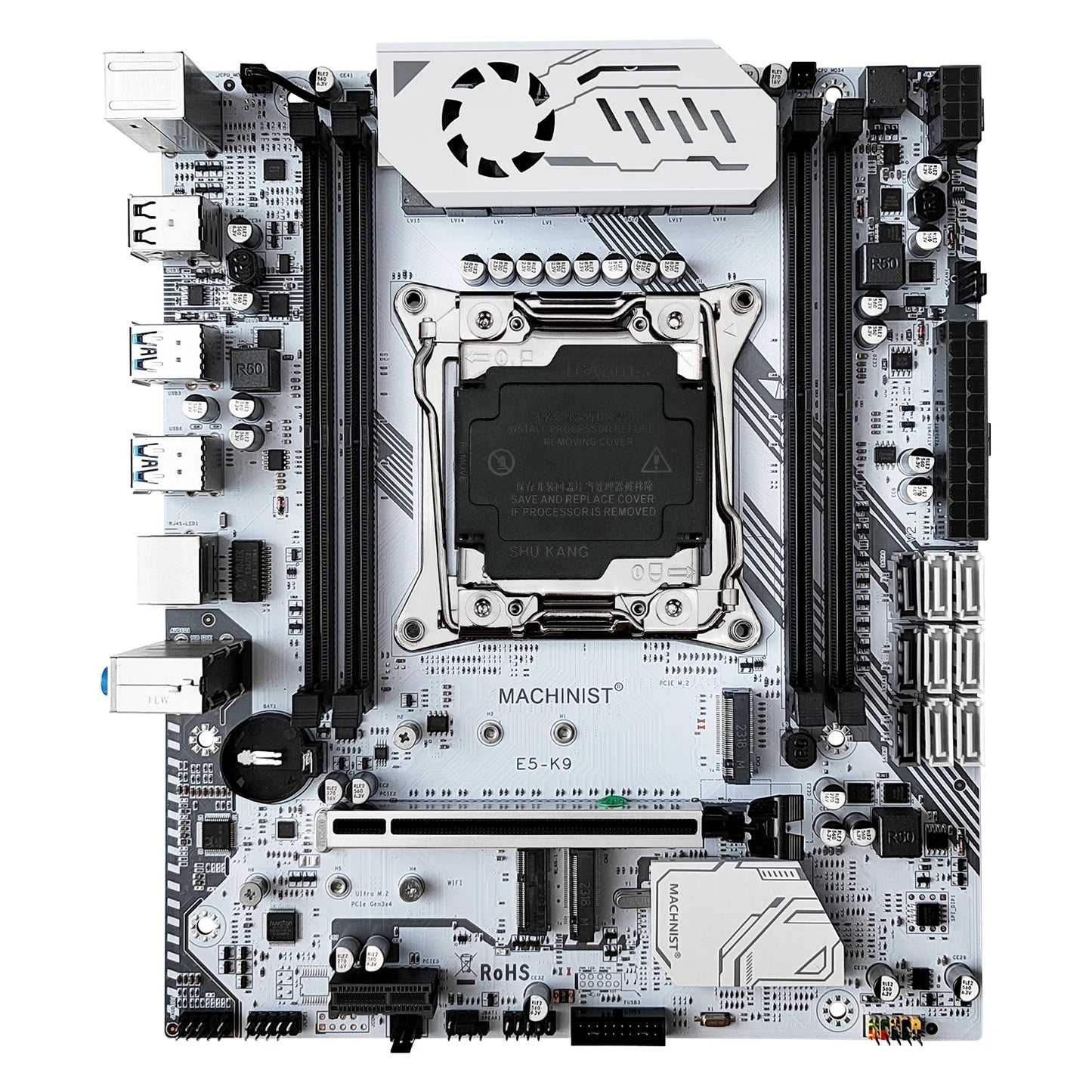

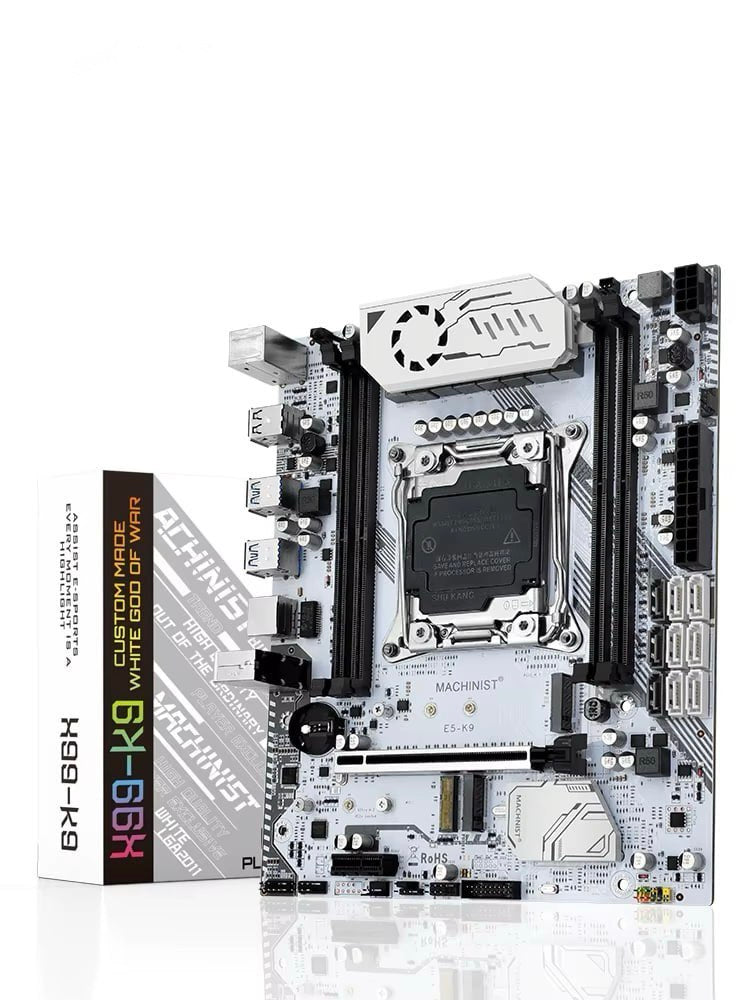

Motherboard is MACHINIST X99 E5-K9
Processor is Intel Xeon E5 2690 V4
The memory is 4PCS×16GB=64GB DDR4 2666MHz memory. (machinist brand)

CPU:E5 2690 V4
Number of cores: 14 cores
Number of threads: 28 threads
CPU socket: LGA 2011-3
CPU frequency: 2.6GHz
Three-level cache: 35MB

Note:
1: The CPU is used and in good condition.
2: There may be some physical scratches on the CPU surface, which is normal.
3: All CPUs are strictly tested before shipment. Please do not worry about performance. Second hand processor, if you mind, please don't buy it. Thanks for your understanding.

Specifications:
Model: X99(E5-K9)
Processor: Supports Intel LGA 2011-3-pin series processors
Chip: X99 series chipset
Maximum memory capacity: 128GB
Support high-speed DDR4 four-channel memory slot: support 2133/2400/2800/3200MHz
Memory slot: 4*32GB
Supported memory type: The memory type supports ddr4 desktop memory and server memory. The two types of memory cannot be used at the same time, and there will be incompatibility
The power socket has 8-pin and 24-pin power connectors, 8-phase power.

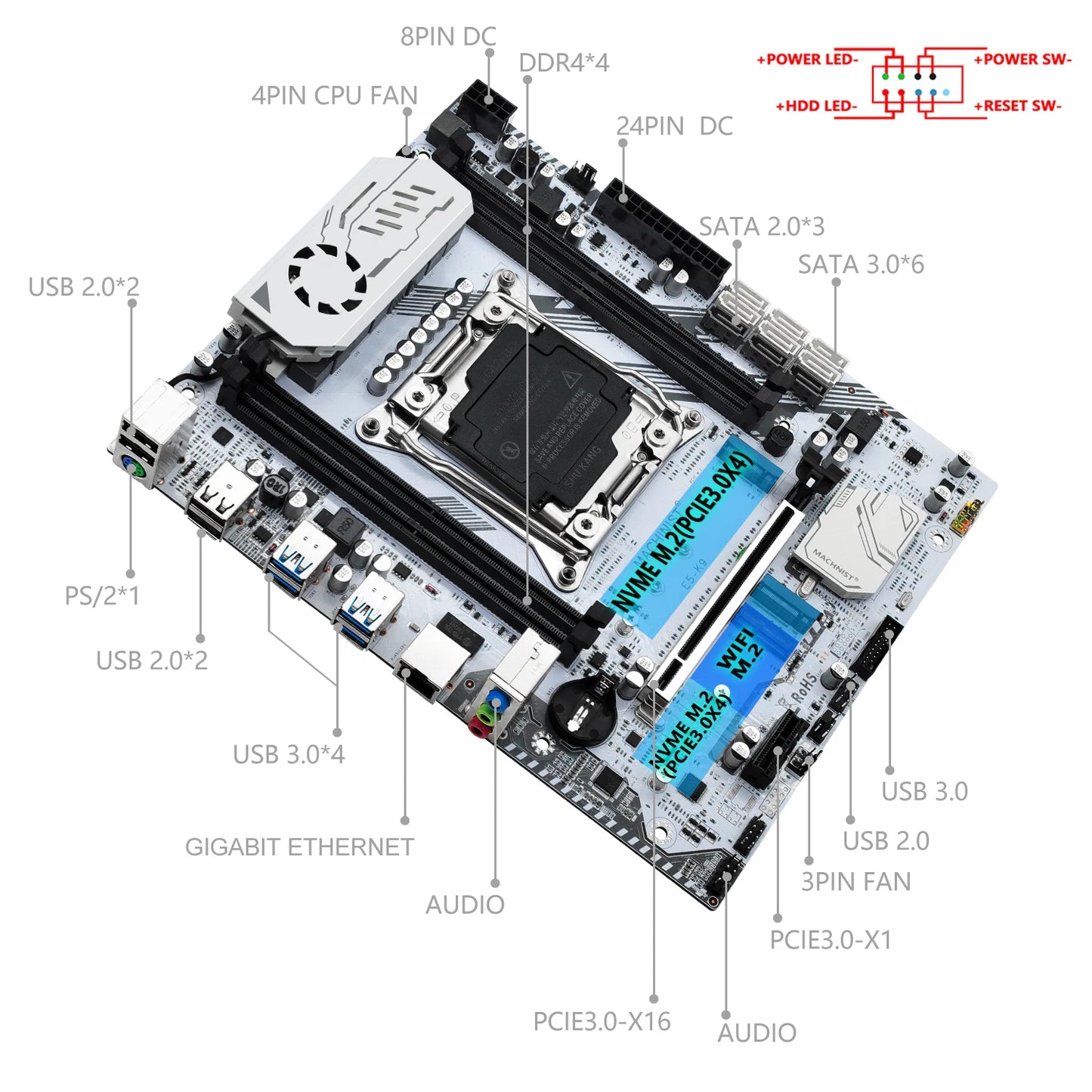

Support 9 SATA ports (Sata 3.0*6/Sata 2.0*4)
4 USB2.0, 4 USB3.0
JLPC: 1 x 2x5Pin
CFAN: 1 4Pin SFAN: 1 3Pin
PCIe: 2 (1 PCIe x16; 1 PCIe x1)
ATXPWR interface: 1 standard 1z8PIN power socket; 1 standard 1x24PIN power socket
Support 5.1 channel ALC897 sound card
Support NVME M.2 SLOT*2(pcie3.0x4) / Wifi M.2
High-speed USB3.0 interface transmission speed, support PCIE expansion slot*2
PS/2: 1 KB interface and 1 MS interface
Audio: 1 (Mic-in, Line-out, Line-in)
Ethernet: 1x Realtek Gigabit LAN
Support RJ4 Gigabit network card interface 6-layer PCB bottom plate, 6-phase power supply
Support win10 32/64 bit operating system
Size: 185mm*235mm
Motherboard Type: M-ATX
Weight: 0.9 kg
This store also sells: processor fan, memory, hard disk, WiFi card
